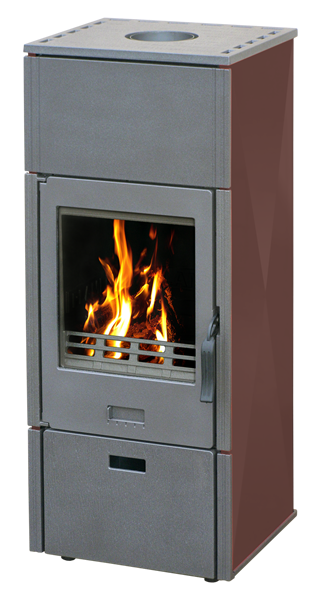

Cast iron stove with a water jacket. Designed for heating an apartment or small home floor - to 80 sq.m.
| Technical data | |||
 |
Dimensions (WxHxD) | 500 x 1220 x 460 mm | |
 |
Heated space | 200 m3 | |
 |
Weight | 164 kg | |
 |
Rated output | 10,5 kW | |
 |
Maximum output | 12 kW | |
 |
Fule loading opening dimensions (WxH) | 340 x 280 mm | |
 |
Firebox dimensions (WxHxD) | 360 x 400 x 340 mm | |
 |
Fluepipe | Ø 150 mm | |
 |
Rated output-water heating | 6 kW | |
 |
Max. operating pressure | 2 bara | |
 |
Quantity of water in the boiler | 12,2 l | |
 |
Energy efficiency | 75 % | |
 |

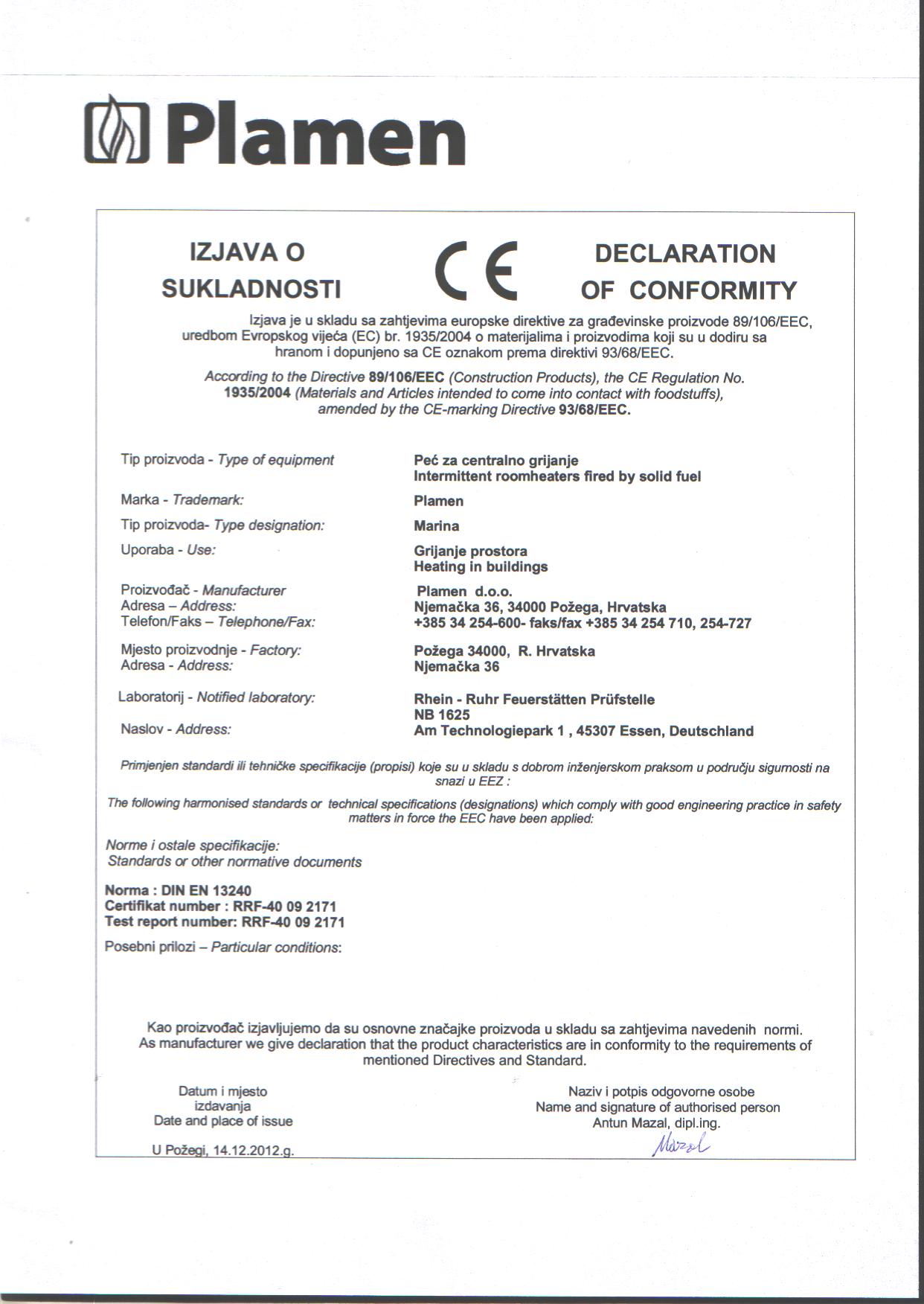

Standard | EN 13240 | |
 |
Available colors |
|
|
