| Technical data | ||
 |
Dimensions (WxHxD) | 690 x 590 x 440 mm |
 |
Heated space | 360 m3 |
 |
Weight | 136 kg |
 |
Rated output | 15 kW |
 |
Maximum output | 20 kW |
 |
Fule loading opening dimensions (WxH) | 560 x 350 mm |
 |
Firebox dimensions (WxHxD) | 560 x 320 x 290 mm |
 |
Fluepipe | Ø 180 mm |
 |
Rated output-water heating | 7,5 kW |
 |
Max. operating pressure | 2 bara |
 |
Quantity of water in the boiler | 9,5 l |
 |
Water connections | 3/4" |
 |
Energy efficiency | 71 % |
 |

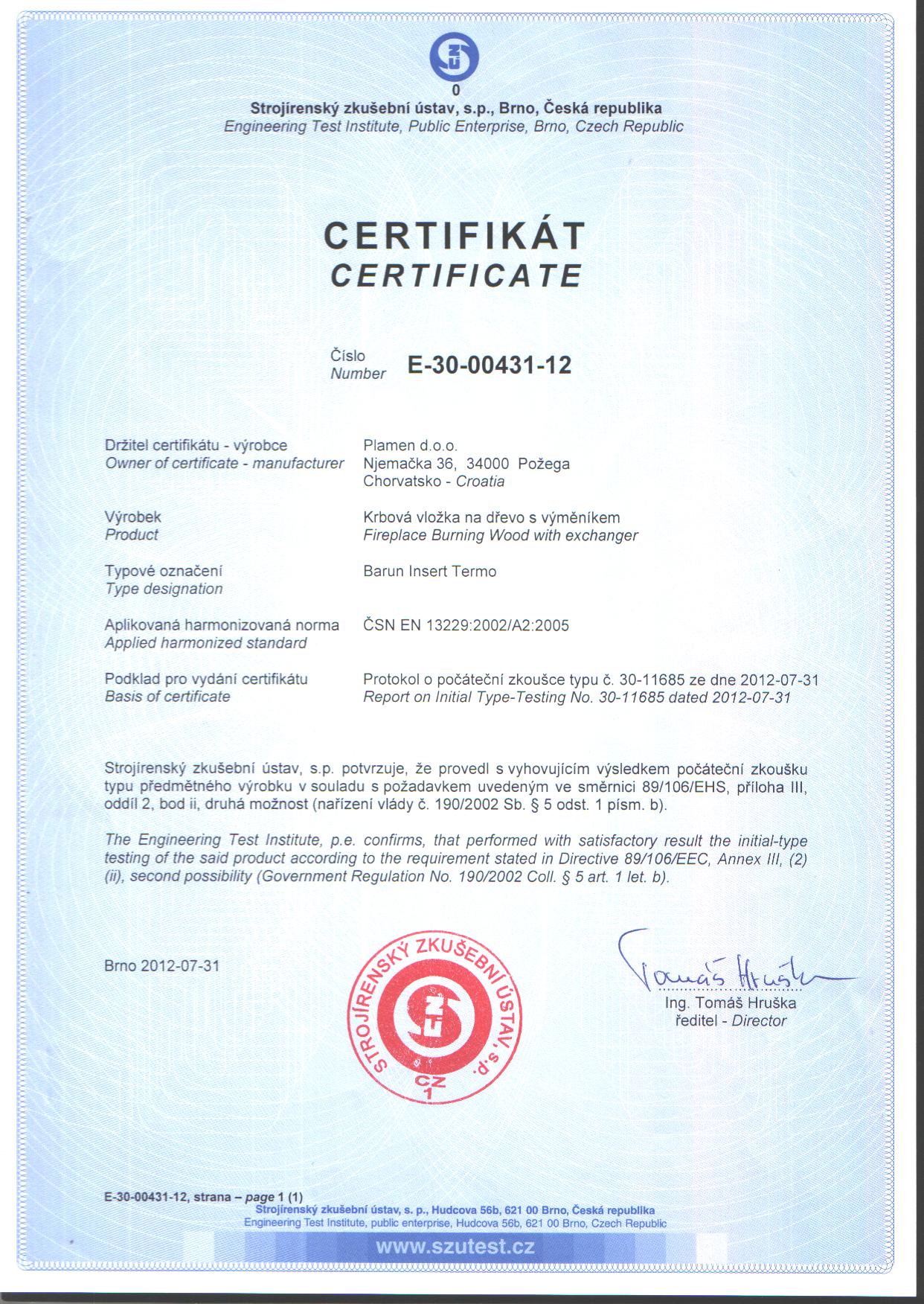

Standard | EN 13229 |
